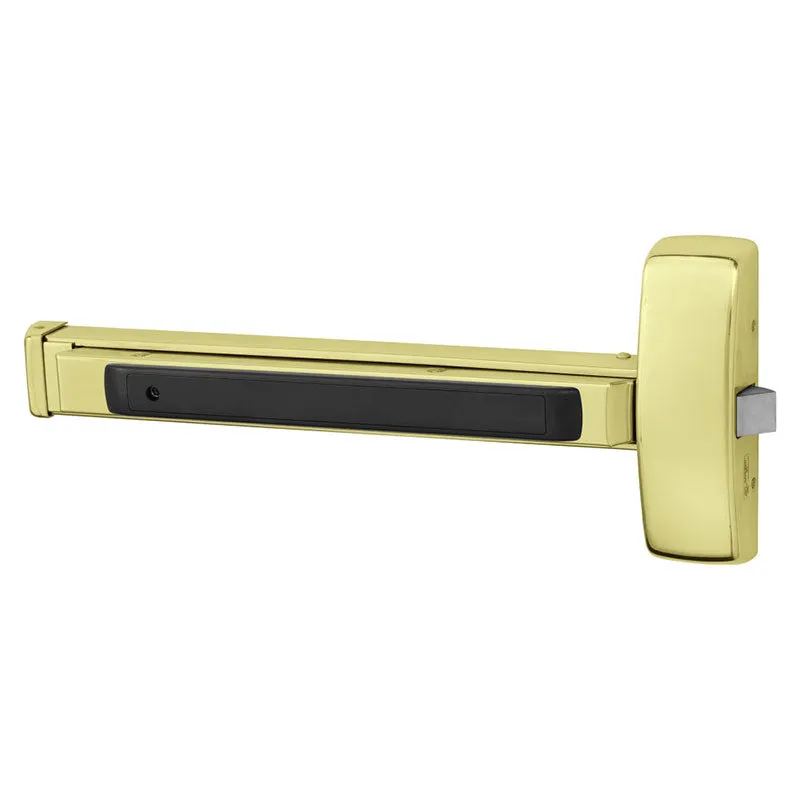

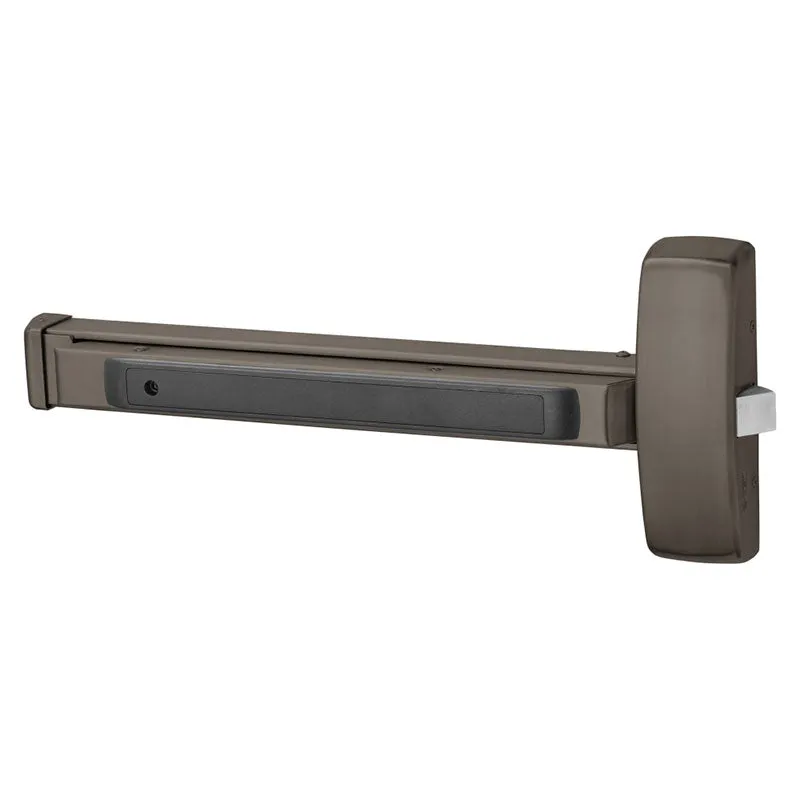

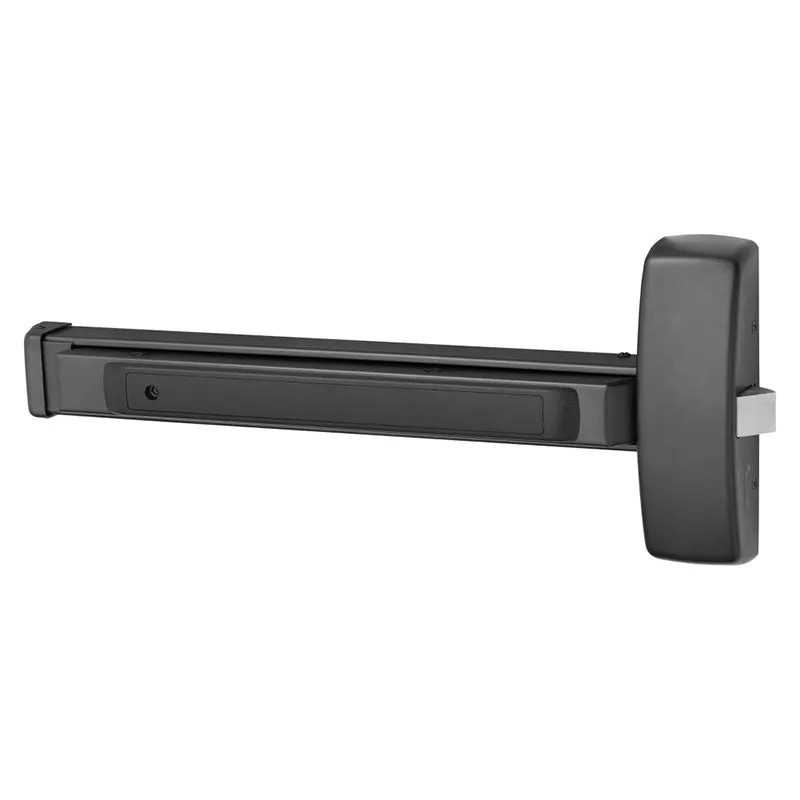

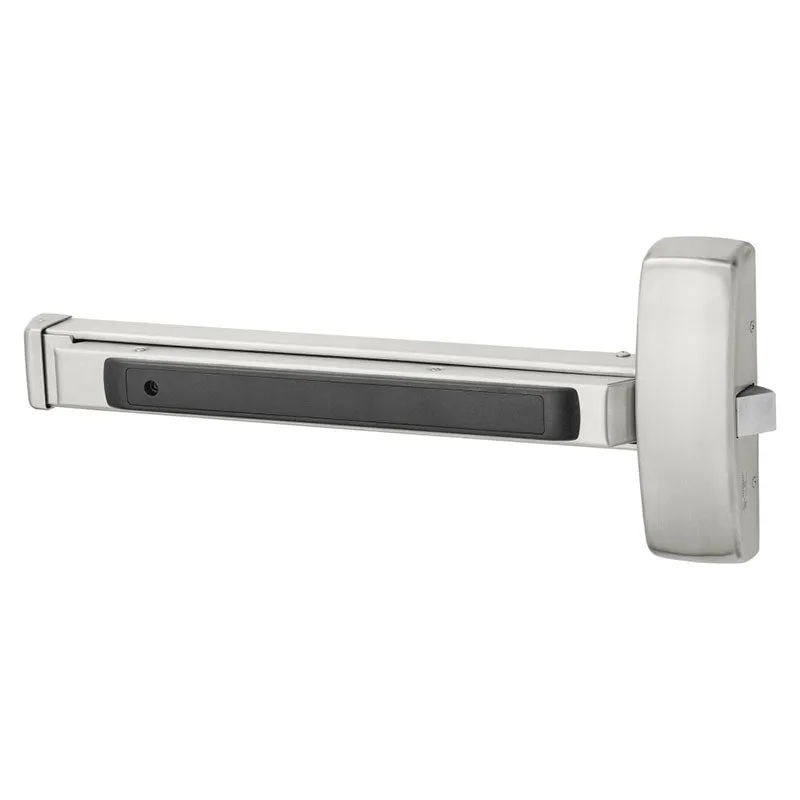

The Sargent 8888-E is a Rim Exit Device, that is Multi-Function, has a Wide Style Push Pad, Exit Only, 24-32" Bar, Field Reversible, Grade 1, and comes Non-Handed.

Sargent 8888 Reversible Rim Exit Device is a multi-function grade 1 surface-mounted panic bar with hex key dogging and a wide style push pad. The 8888 is non-handed, with seven functions determined by the trim.

Multi-Function Device: Trims below decide the function of the device;

704 - Night Latch Function, Key Retracts Latch (accepts a Sargent #34 Cylinder)
710 - Dummy Trim: No outside operation (No Cylinder)
713 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715 - Passage Only (No cylinder)
773 - Fail Safe (No Cylinder)
774 - Fail Secure (No Cylinder)
775 - Fail Safe (accepts a Sargent #34 Cylinder)
776 - Fail Secure (accepts a Sargent #34 Cylinder)

Features: Sargent 8888 Rim Exit Device

• Non-handed
• Single and double door applications
• Device & trim sold separately; easy to mix and match
• 3 available trim designs; trim is field reversible
• Available in 32", 36", 42" and 48" widths (please specify)
• Available in US32D/630, US10B/613, & US3/605 Finishes

Compatible Panic Trims - Sold Separately

Product Specs

Manufacturer	Sargent
SKU	8888E
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	No
Burglar Rated	No
ADA Compliance	No

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Rim
Mechanical Function	Exit Only, Accepts Various Trim
Device Length	32"
Hand	Non-Handed
Dogging Options	Hex Key Dogging
Includes Trim	No
Trim Type	Less trim
Includes Cylinder(s)	No
Minimum Stile Size	4 3/4"
Door Material	Metal or Wood
Door Width	24" to 32"
Door Thickness	1 3/4" - 2 1/4"
Fire Rated	No
Reversible	Yes
Product Type	Rim Exit Devices
